MIL-PRF-83282D(1)

RADCOLUBE® FR282

HYDRAULIC FLUID, FIRE RESISTANT, SYNTHETIC HYDROCARBON BASE

RADCOLUBE® FR282 is a military-qualified synthetic, fire-resistant hydraulic fluid consisting of synthetic hydrocarbon base oils and additives. Designed for safe use in low temperature systems ranging from -40C to 205C, RADCOLUBE® FR282 demonstrates excellent low temperature properties, oxidative stability and fire protection in both military and industrial/commercial applications.

Qualification Numbers

NAWCADPAX ltr 4123 Ser 434200A/10.0040

Qualification Date

28 June 2010

Recertification Date

2 November 2016

ISO 9001: 2015 Certification Number

C2024-00254

NATO Code

H-537

Shelf Life

24 Months from DOM

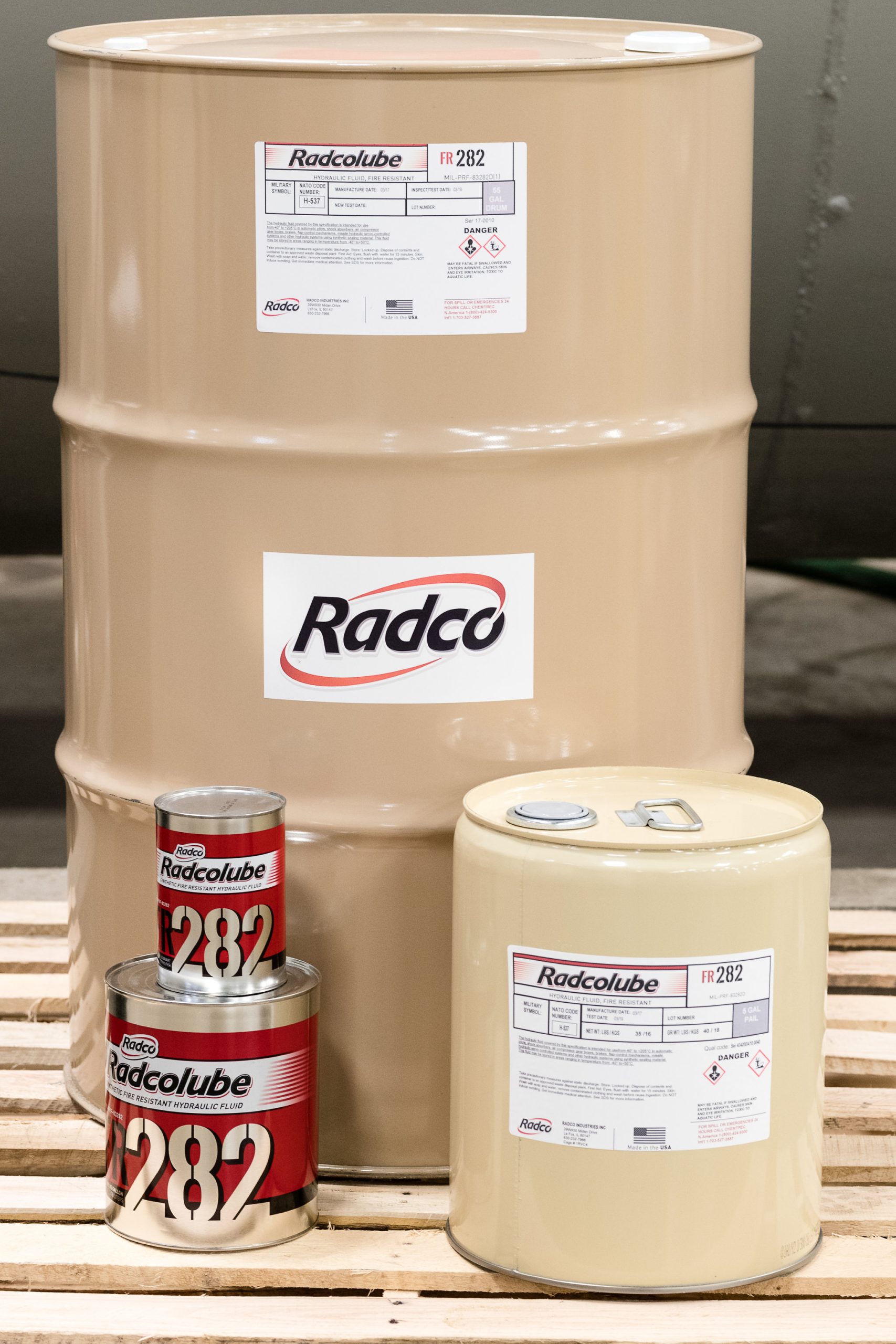

National Stock Numbers (NSN)

* 5 Gallon Pails Available at Request

9150-00-149-7431             Quart

9150-00-149-7432             Gallon

9150-01-009-7709             10 Gallon Drum

9150-00-180-6290             55 Gallon Drum

CHARACTERISTICS
REQUIREMENT
TYPICAL RESULTS
TEST METHOD
Kinematic Viscosity,
Centistokes
@ 40 °C, minimum

14.0 cSt

14.1 cSt

ASTM D455-10
@ 100 °C, minimum

3.45 cSt

3.51 cSt

ASTM D455-10
@ -40 °C, maximum

2200 cSt

1917 cSt

ASTM D455-10
Foaming Characteristics, @ 25°C

Complete Collapse

Complete Collapse

ASTM D892-10
Evaporation Loss (%wt), maximum

20.0

17.7

FED STD 791-350.2
Pour Point, °C, maximum

-55°C


-72
°C


ASTM D5949-10
Flash Point, °C, minimum

205°C


207°C


ASTM D92
Fire Point, °C, minimum

245°C


255°C


ASTM D92
Total Acid Number, maximum

0.10 mg KOH/g

0.09 mg KOH/g


ASTM D664
Water Content, ppm maximum

100 ppm

7 ppm

ASTM D 6304-07
Solid Particle Contamination per      100 ml, microns
5 to 15

10,000 max

3,396

FED-STD-791D 3012
16 to 25

1,000 max

299

FED-STD-791D 3012
26 to 50

150 max

76

FED-STD-791D 3012
51 to 100

20 max

10

FED-STD-791D 3012
+100

5 max

0

FED-STD-791D 3012
