MIL-PRF-12070E(1)

RADCOLUBE® FOG OIL

FOG OIL

Radcolube® FOG OIL intended for applications requiring one grade and type of fog oil with Military Symbol SGF-2 and NATO Code F-62.  A refined mineral oil specifically prepared for use in smoke generators, characterized by its ability to be dispersed into the air as extremely small particles in the form of a smoke.

ISO 9001: 2015 Certification Number

C2024-00254

NATO Code

F-62

Shelf Life

36 Months from DOM

National Stock Numbers (NSN)

* 5 Gallon Pails Available at Request

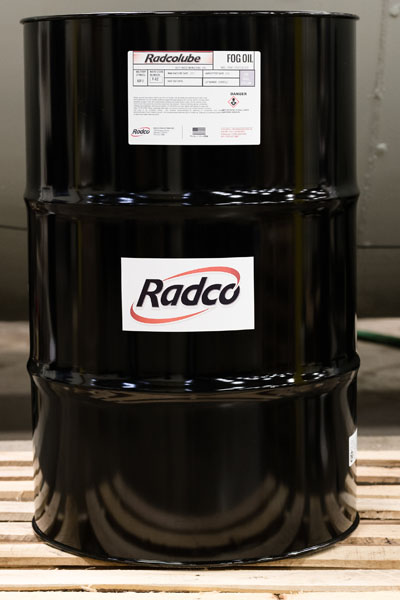

9150-00-261-7895          55-Gallon Drums
CHARACTERISTICS REQUIREMENT Typical Results TEST METHOD
Appearance Conform Conforms Visual
Flash point, °C minimum 160 180 ASTM D92
Viscosity, Kinematic at 100°C (mm2/s) 3.40 – 4.17 3.673 ASTM D445
Neutralization number, mg KOH/g maximum 0.1 0.01 ASTM D974
Pour point, °C maximum -40 -48 ASTM D974
Ramsbottom carbon, %volume maximum 0.2 0.089% ASTM D524
Water and sediment, %volume maximum 0.06 0.002% ASTM D1796
Mutagenicity Conform Conforms ASTM E1687
Carcinogenicity Conform Conforms Paragraph 4.5.3.1
White oil purity, units maximum 200 51 FDA 21 CFR Part 3620.178(B)
